The 'New / Extended' Patio Area
...
and now it's time to put on the Roof
...
Page #01
The Back Channel
eighteen photos
Thursday 29th September 2011

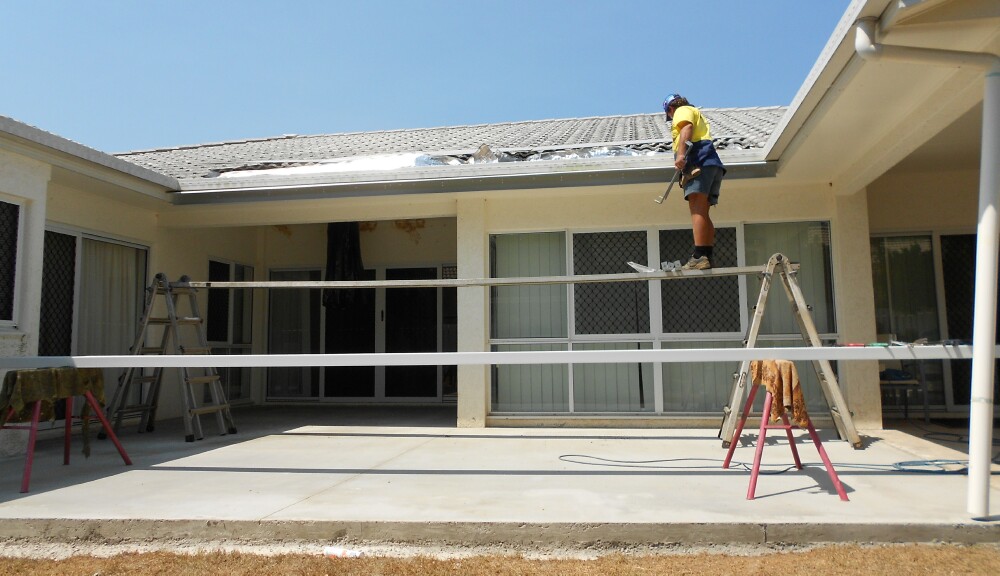

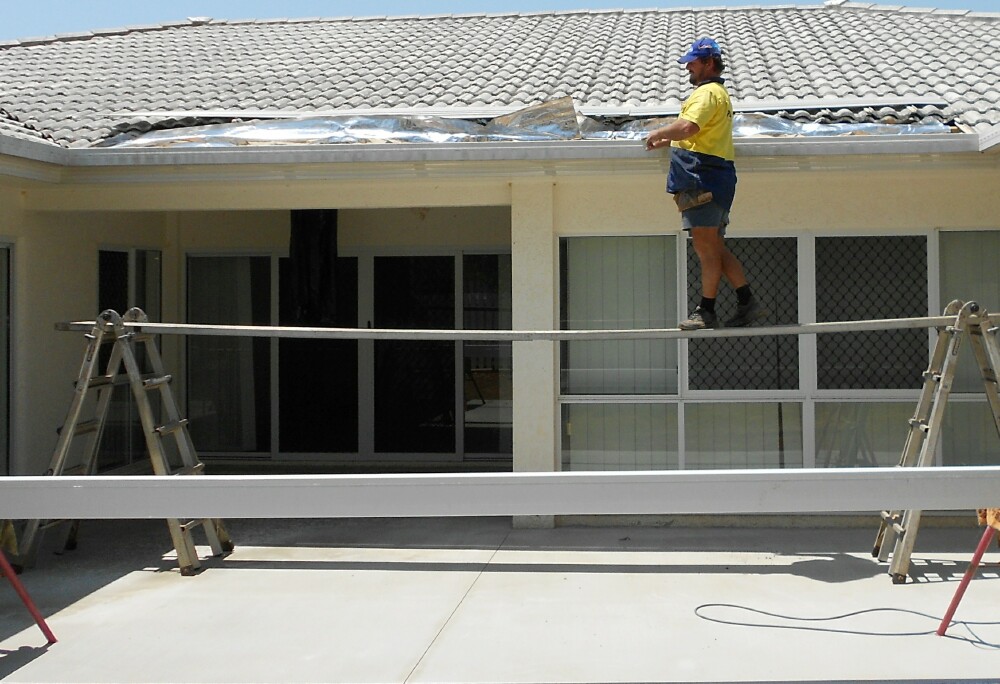

Moving the tiles to allow access to the roof trusses

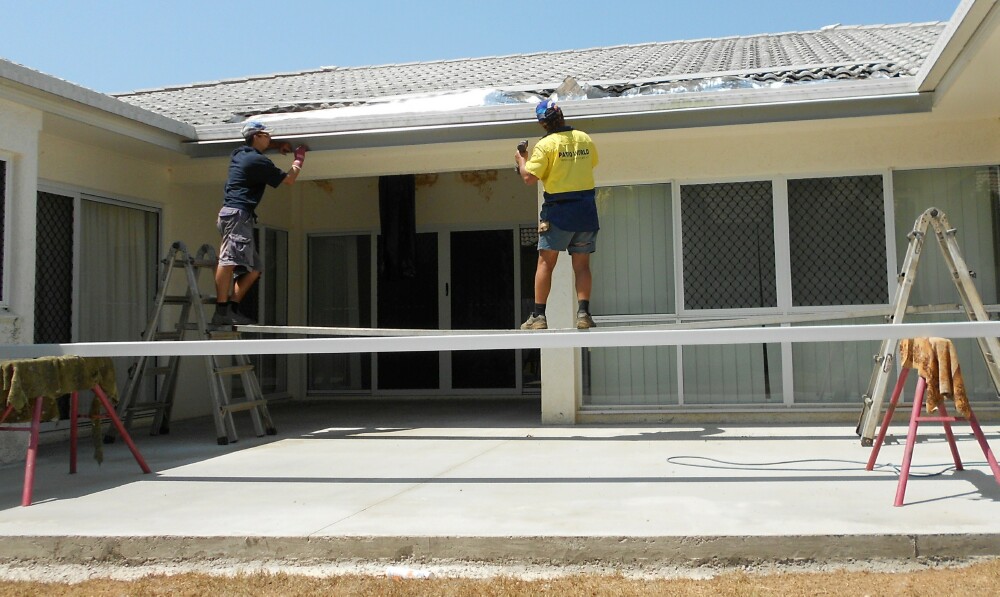

Fixing the back channel to the fascia
.
.

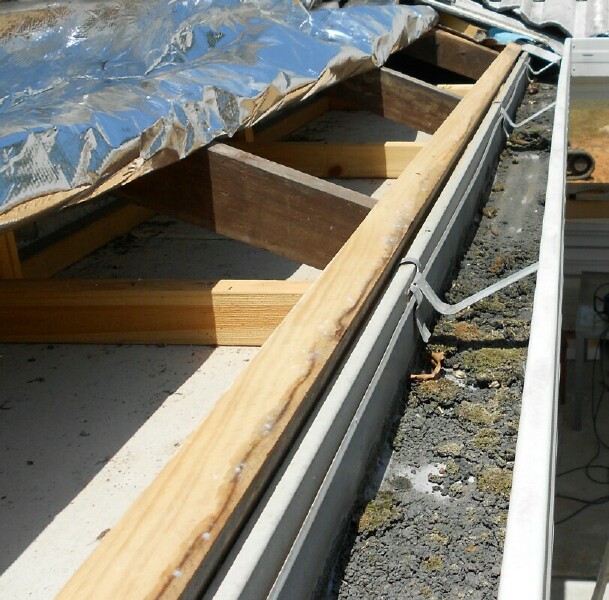

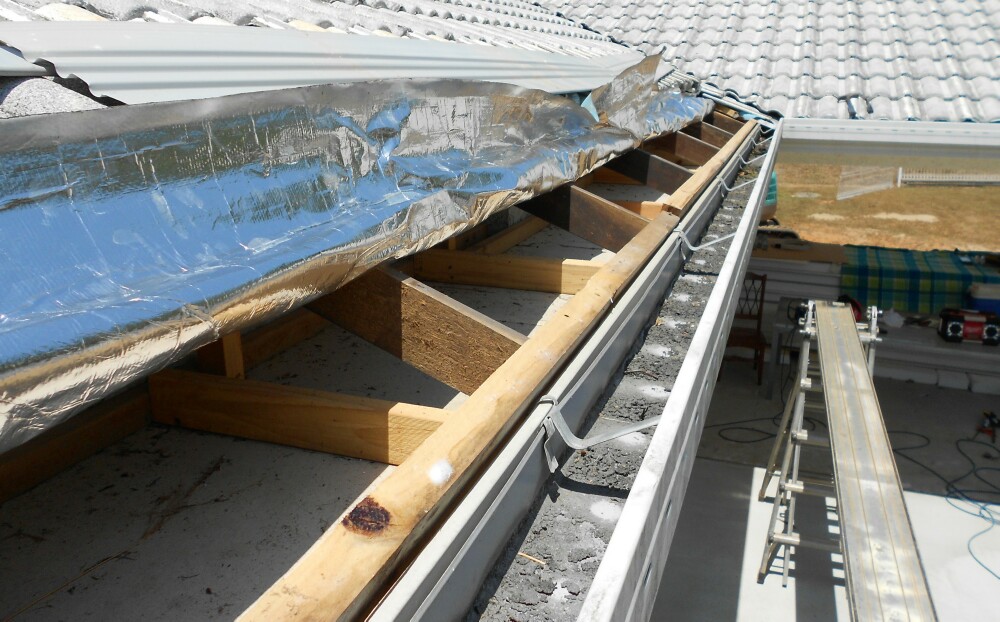

Here is a look at the roof trusses ...
... and these rafter brackets were fixed to the trusses and bolted through the fascia and the new back channel
NOTE - the downpipe showing in the next three photos is going to be repositioned

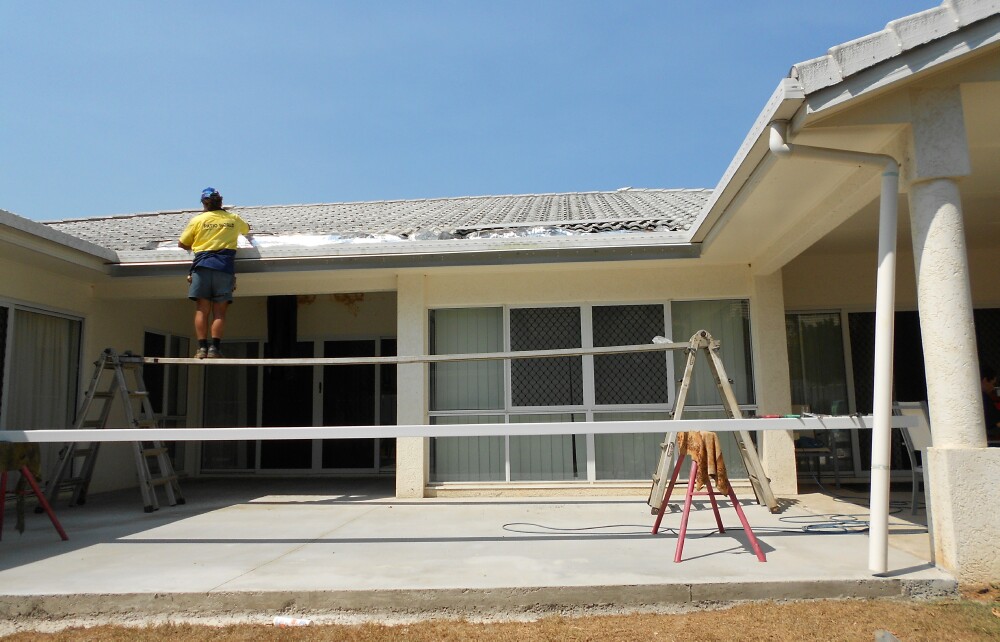

The tiles are now going back in place

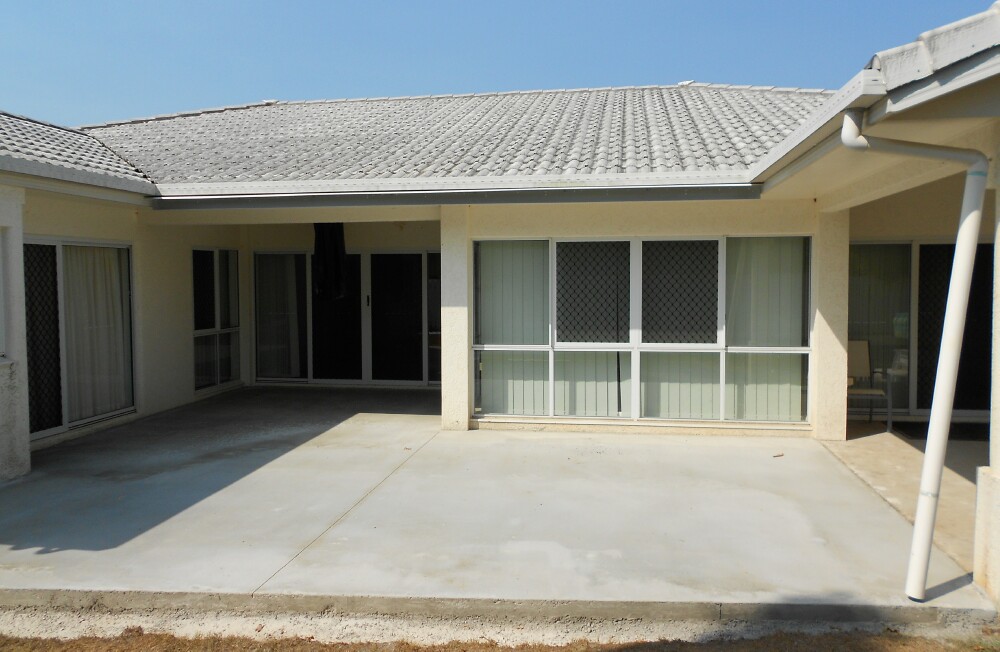

This part of the work is now finished

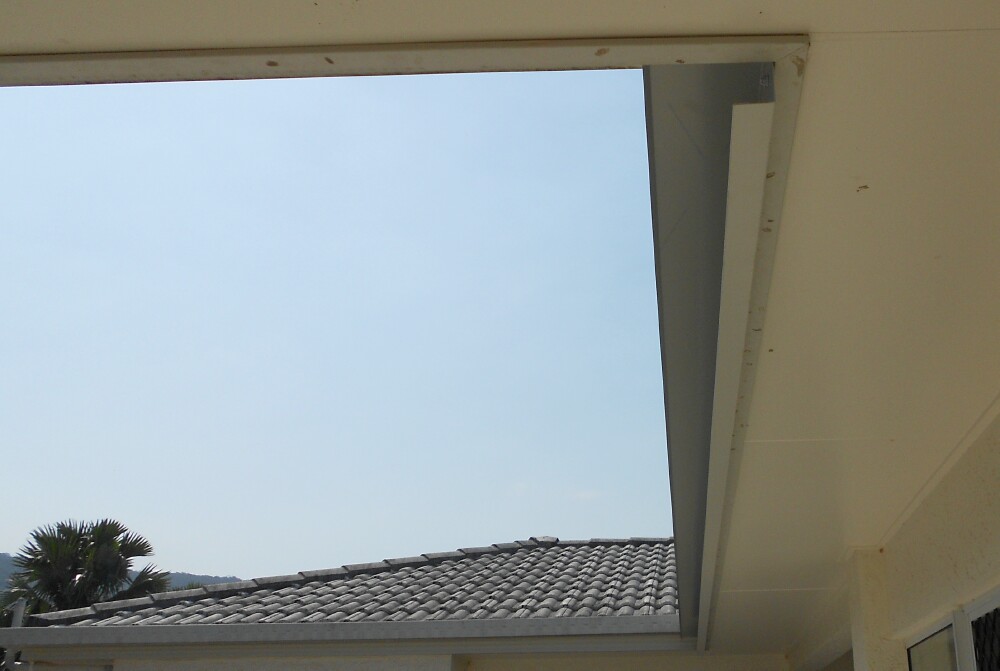

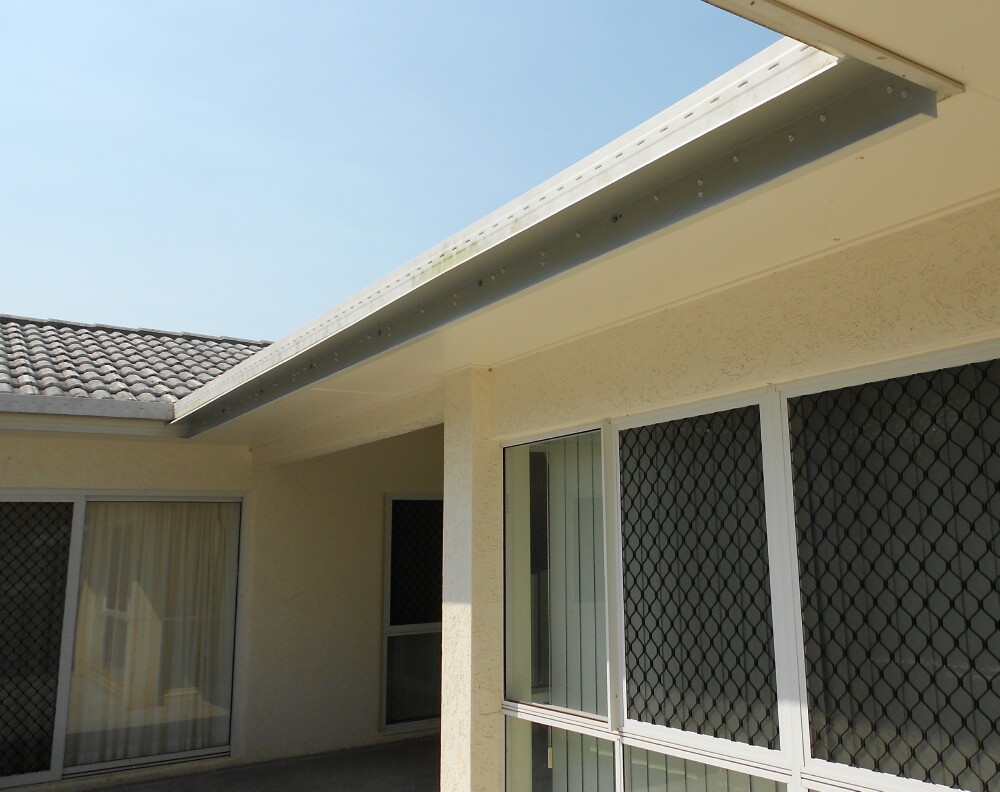

A closer look at the back channel
The white spots are tek screws and the darker ones are the bolts going through to the rafter brackets
.
***************************************************************************
Friday 30th September 2011
The Beam and The Post
You can see the bracket on the ensuite wall just to the left of the window

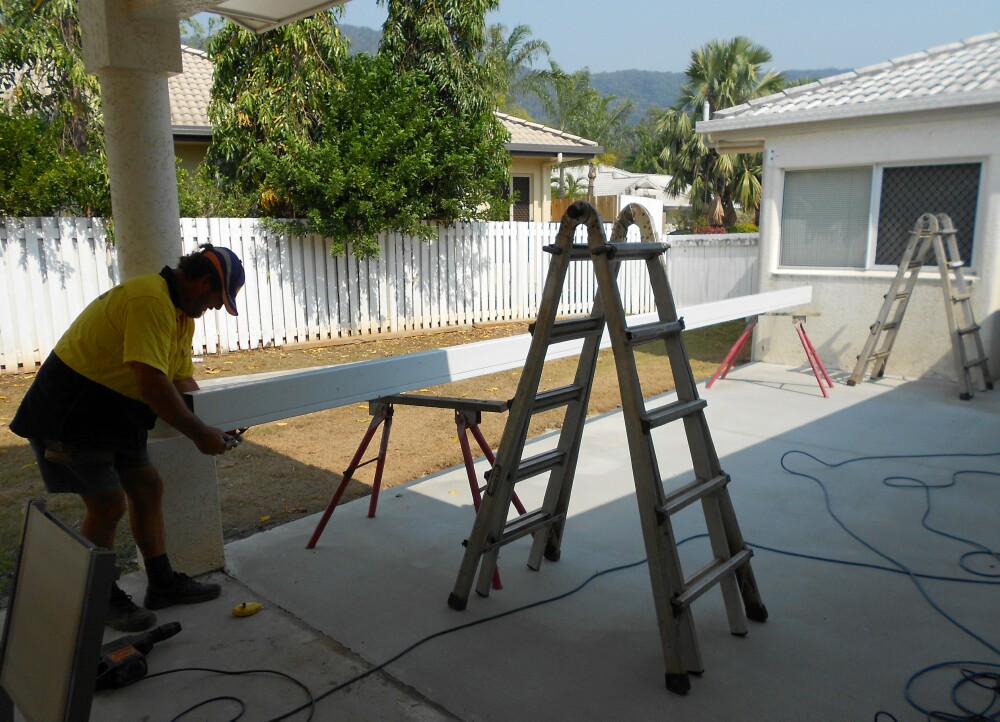

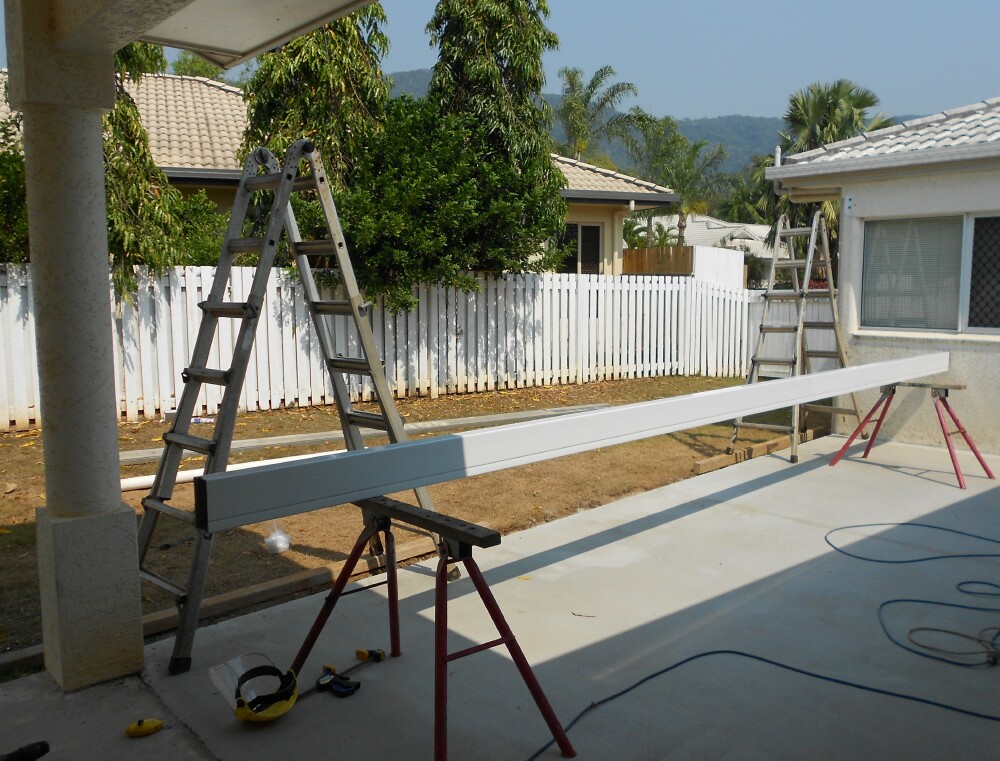

and now Gary is getting the beam ready to raise ...
... and it goes from here ...

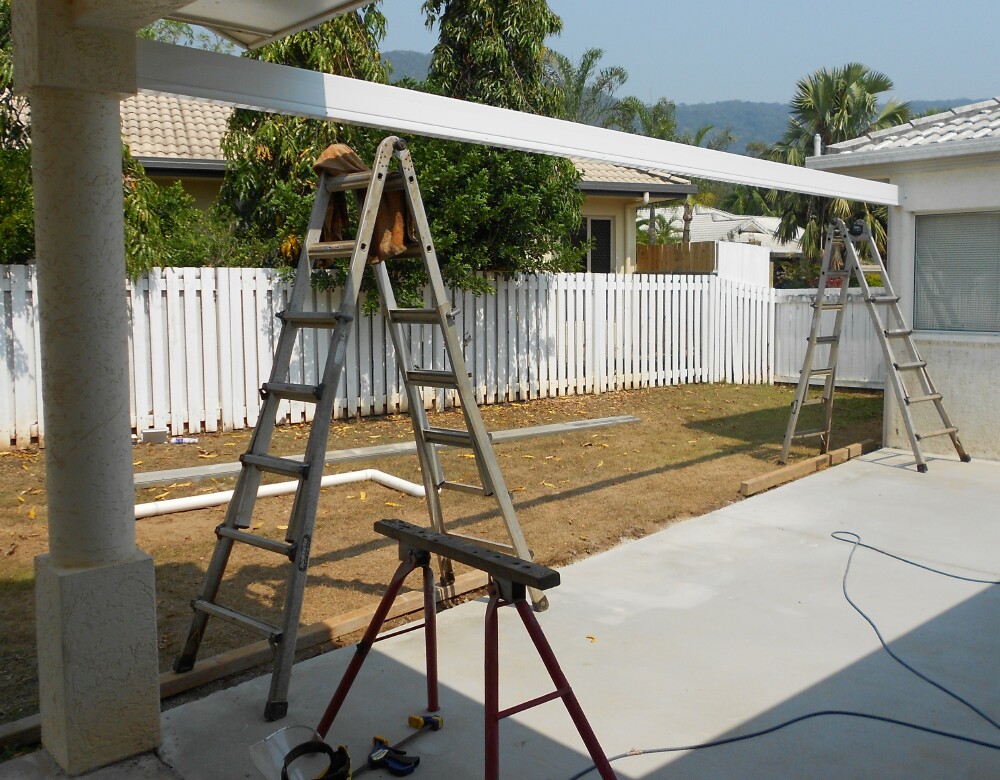

... to here ... done !!

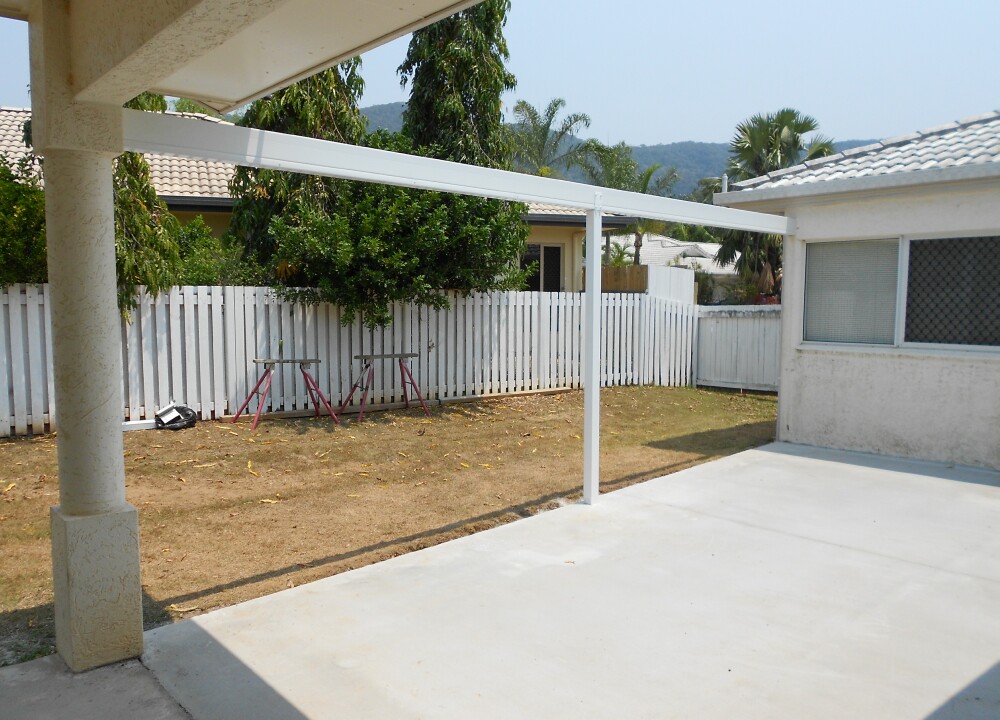

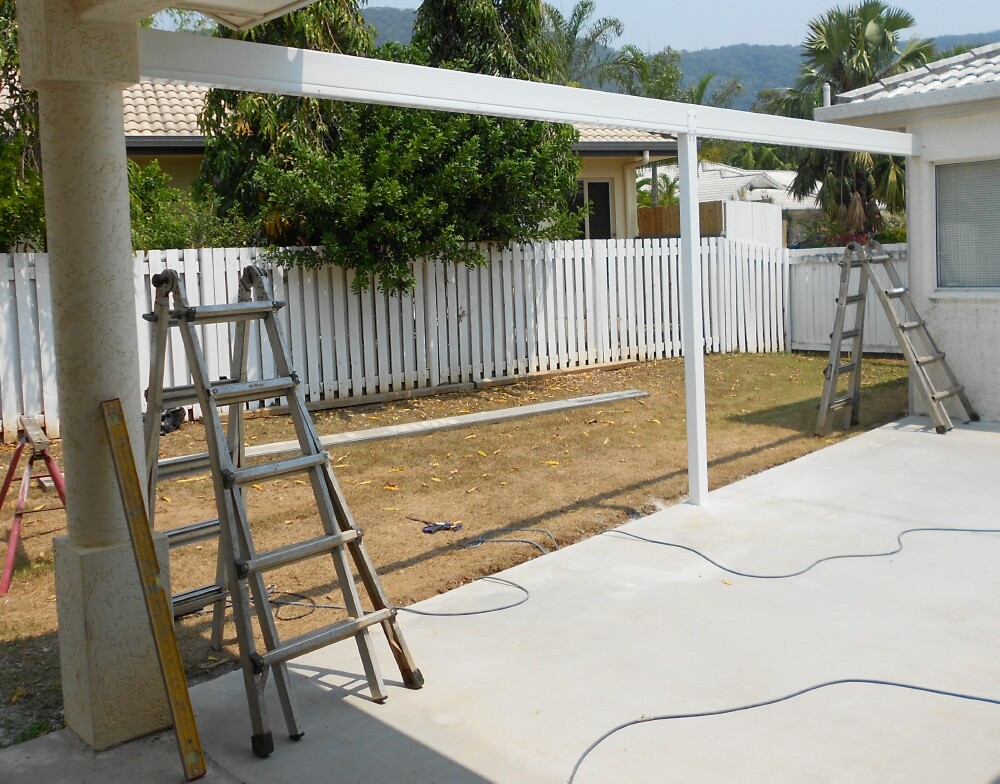

The centre post is now in place

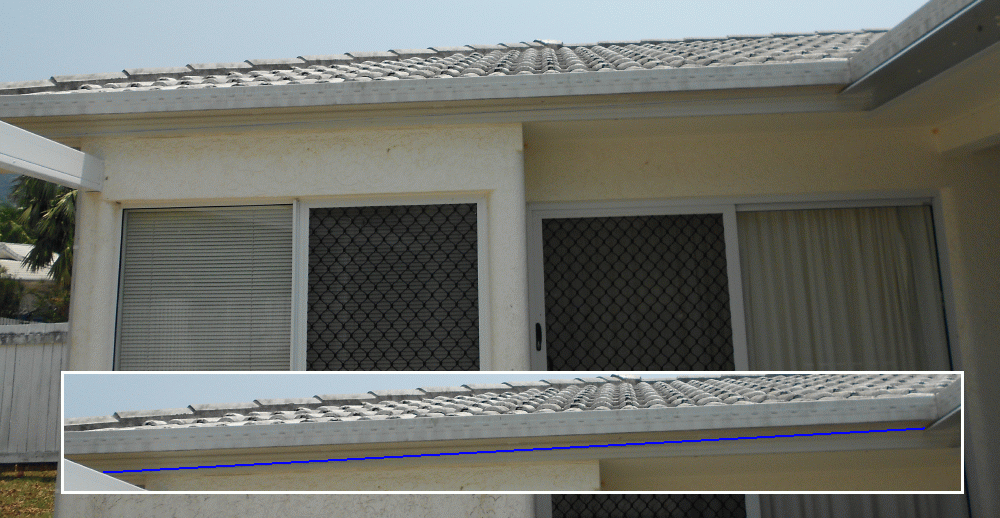

The blue chalk line on the fascia shows the roof line and fall ... and this been highlighted in the insert

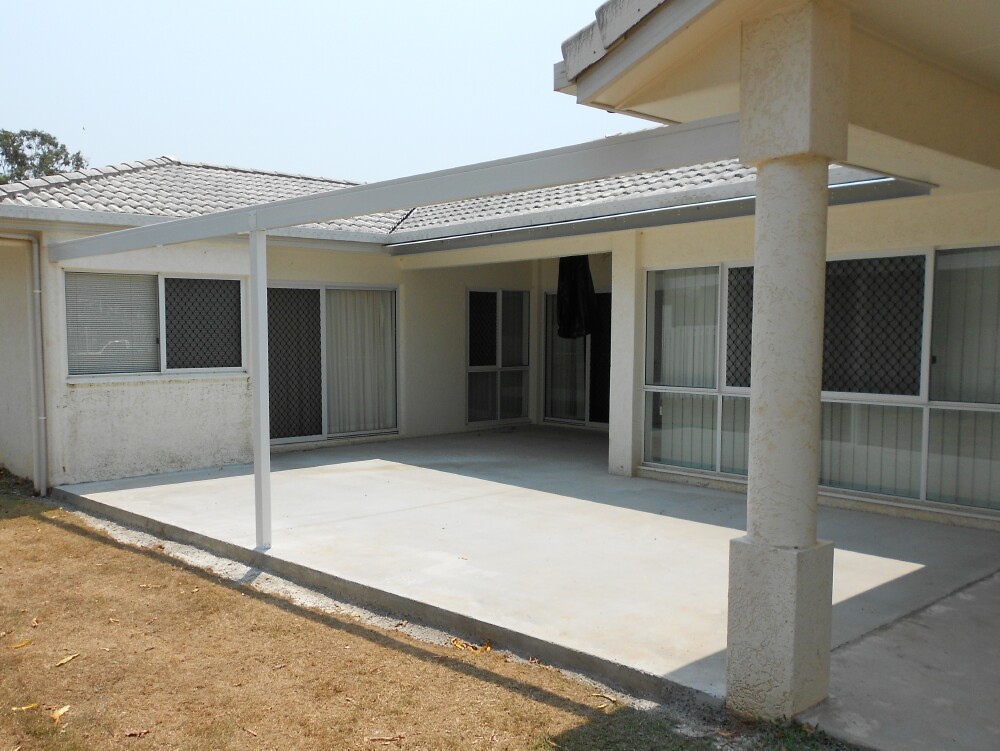

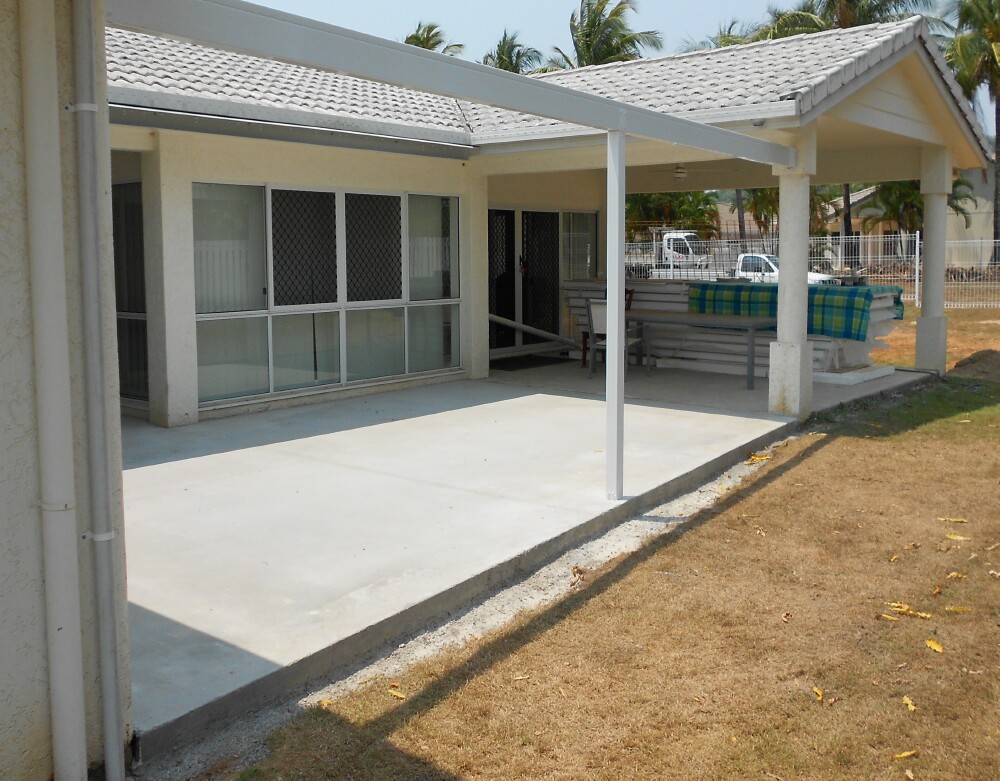

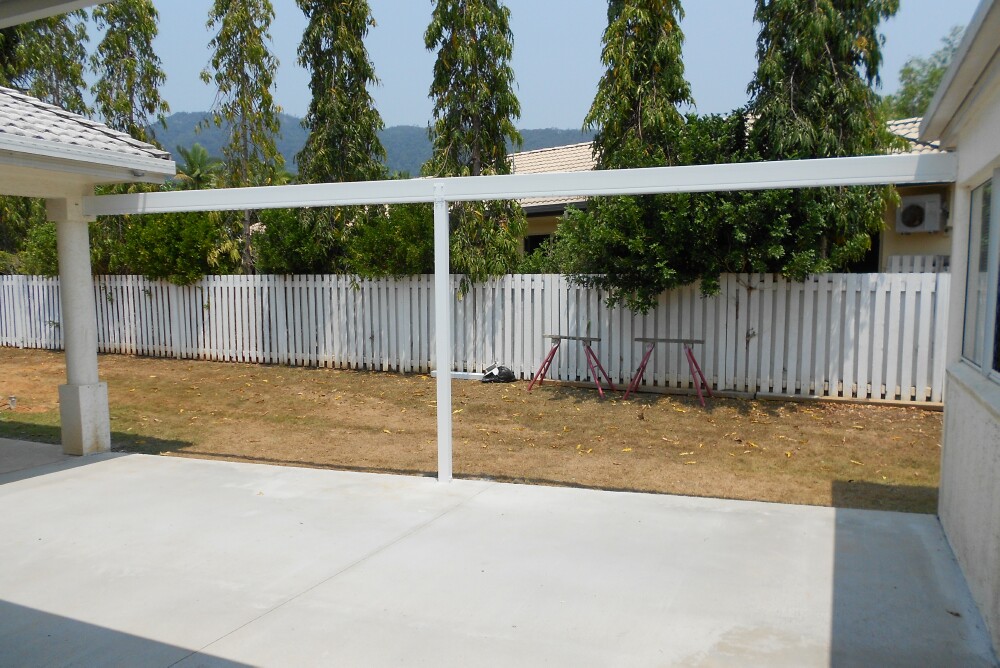

The four shots below show the new patio from different angles
.
.
.
... and
CLICK HERE
to go to
Page #02
