The Swimming Pool

twenty one photos

Boxing Out the Pool Surrounds

Tuesday 25th October 2011

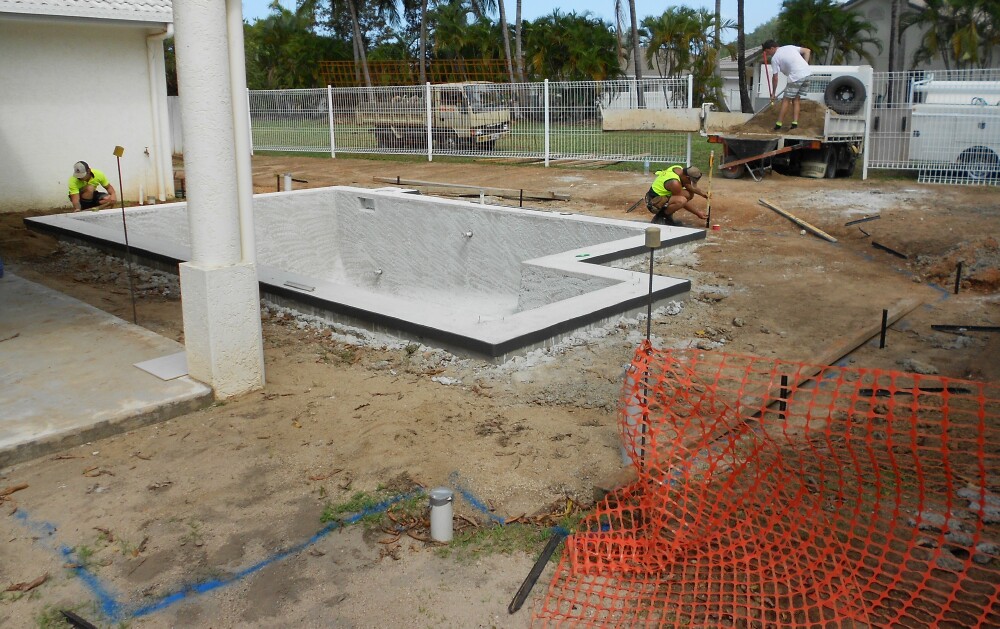

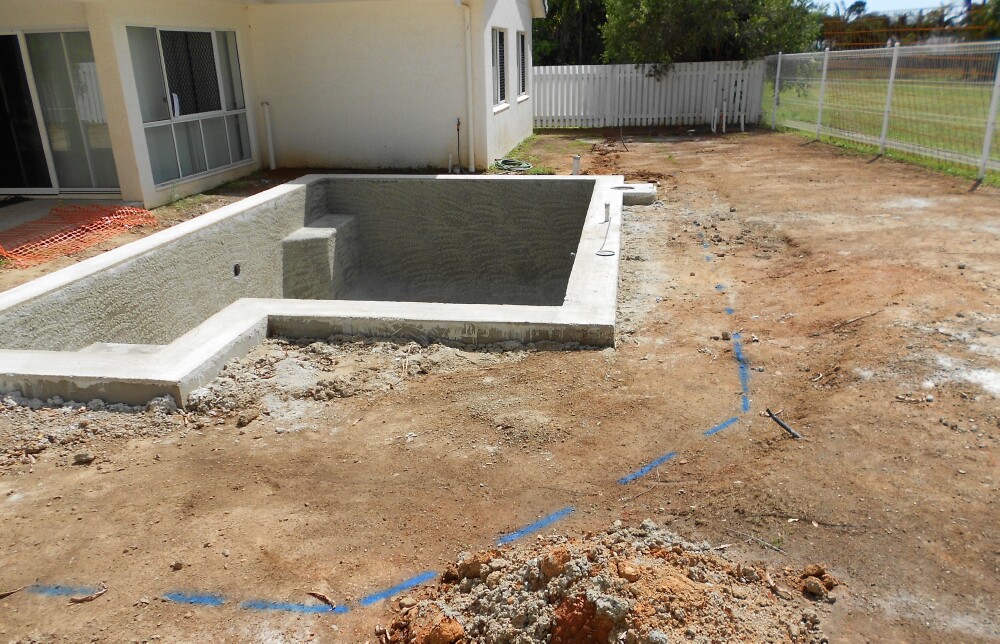

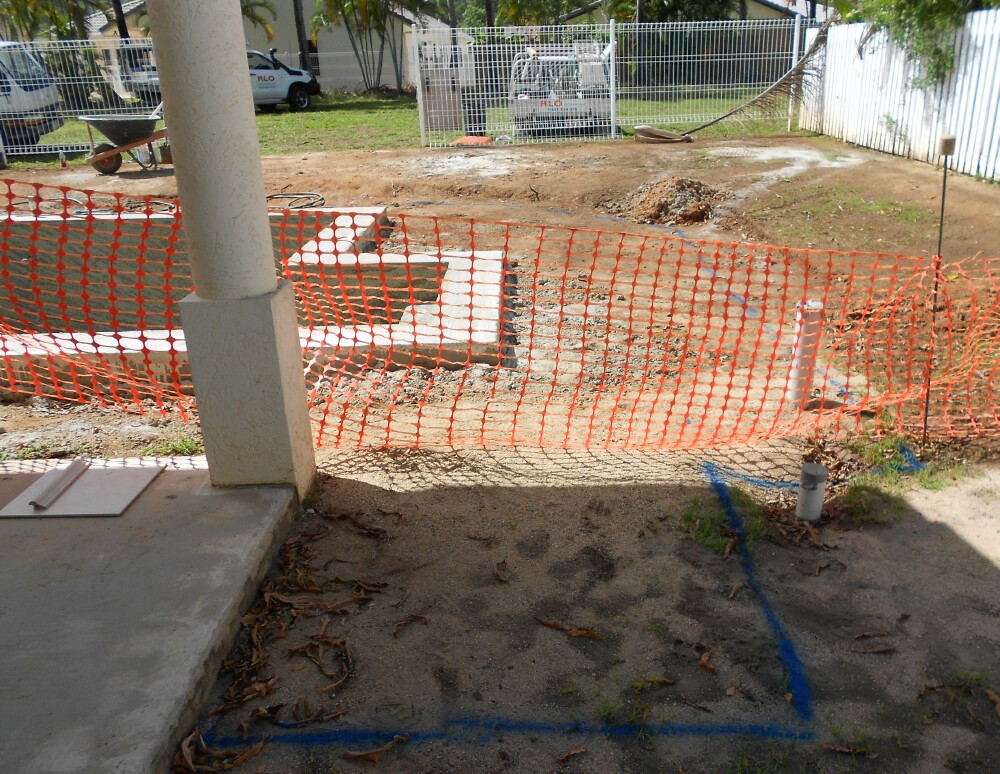

The surrounds have been marked out in blue paint and here is the entrance and top of the pool ...

... and along the back section

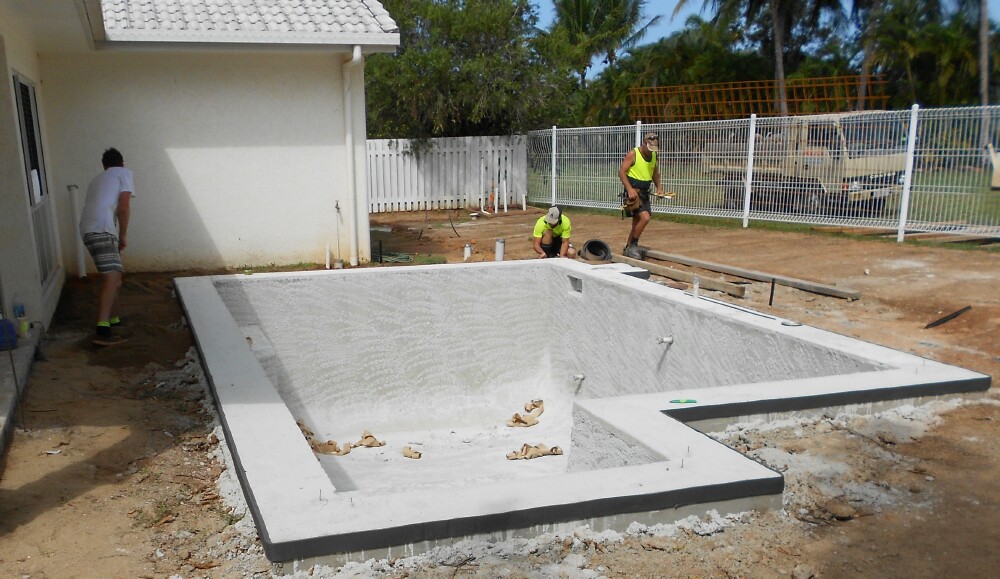

I don't know what the black 'spacing' material is called ... it is self adhesive and was applied around the pool
and existing slab ... and naturally it will be covered completely when the tiles are laid across the whole area

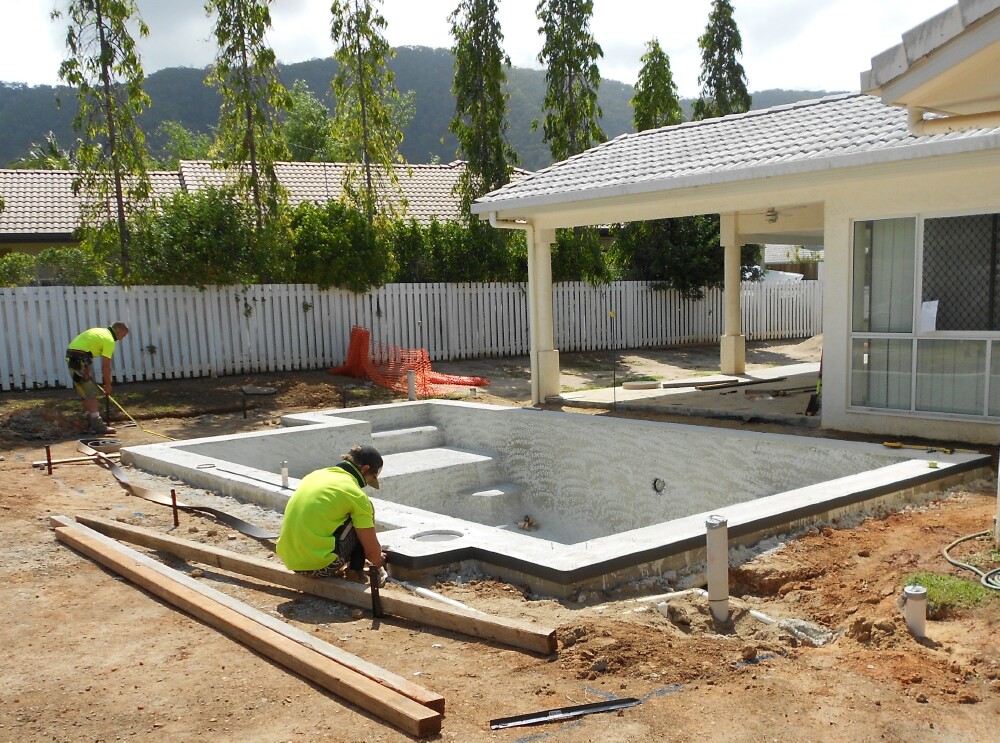

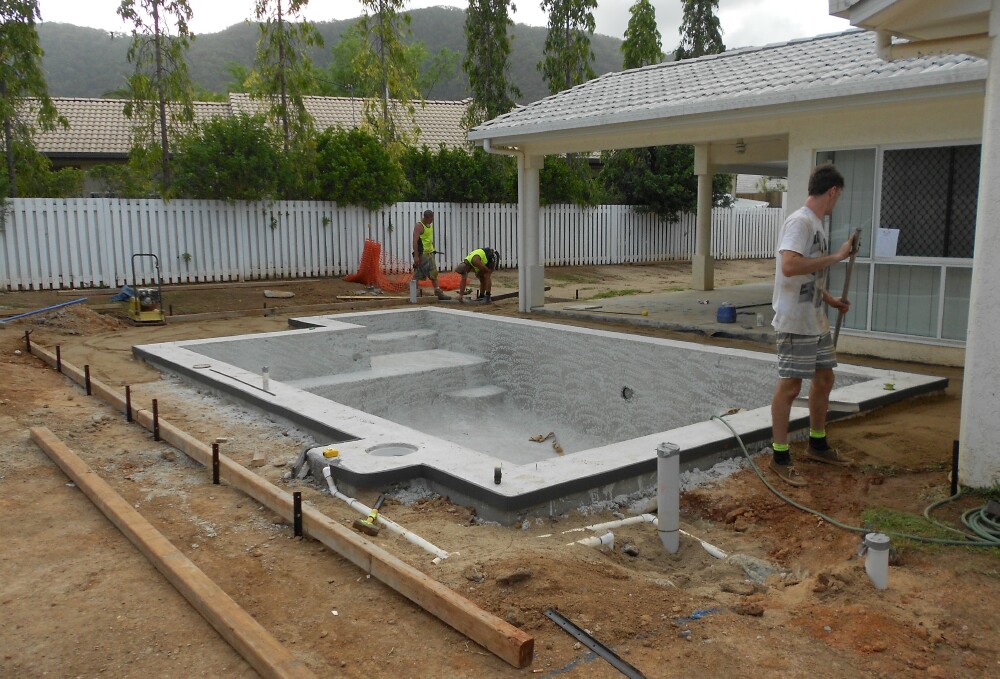

Pegs have been driven in and their height is now being checked and marked

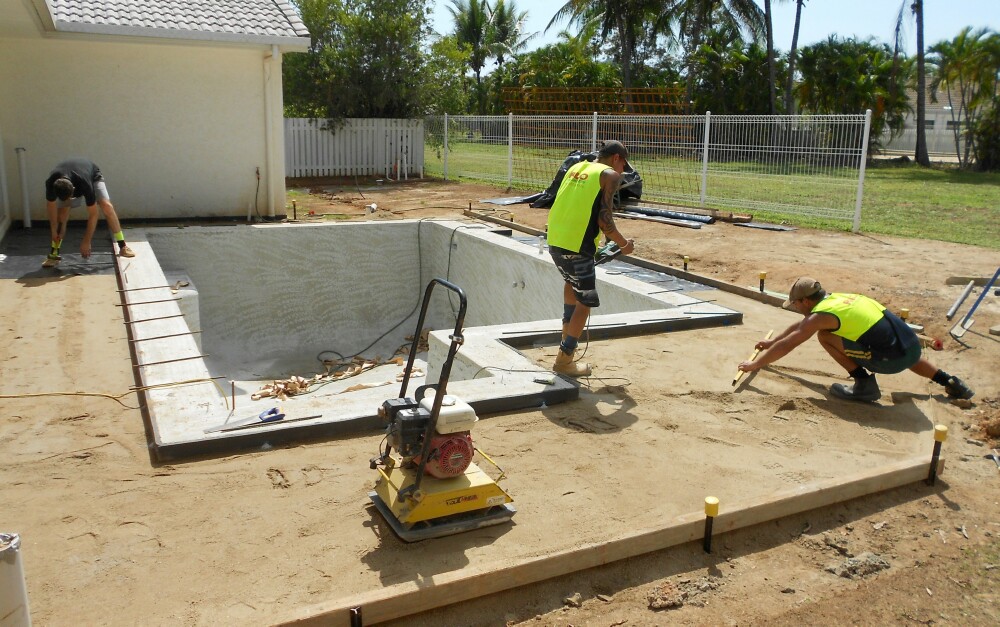

Fill sand is now being spread ...

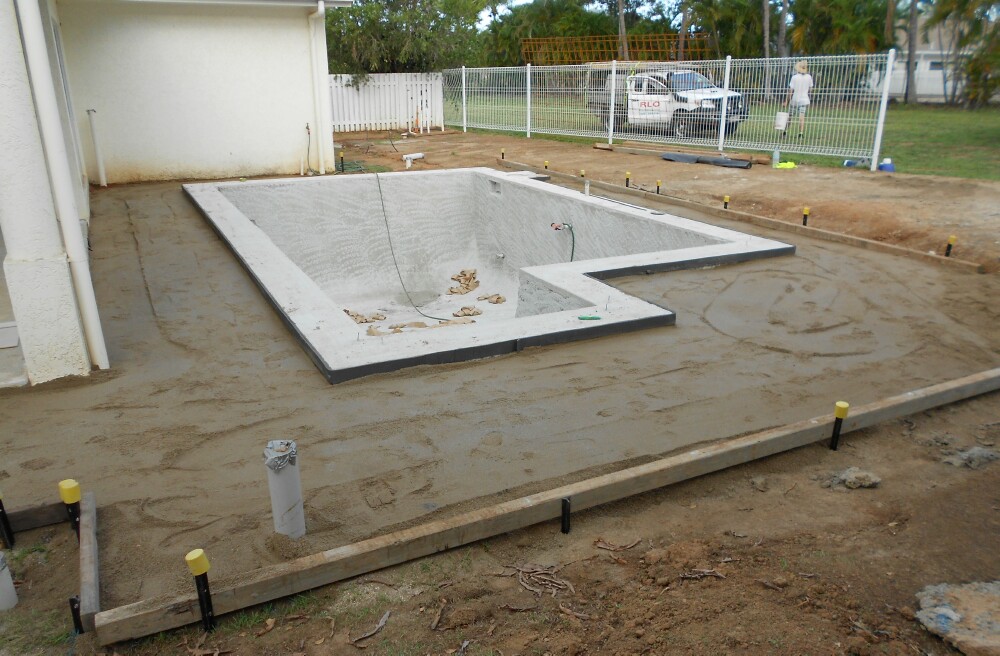

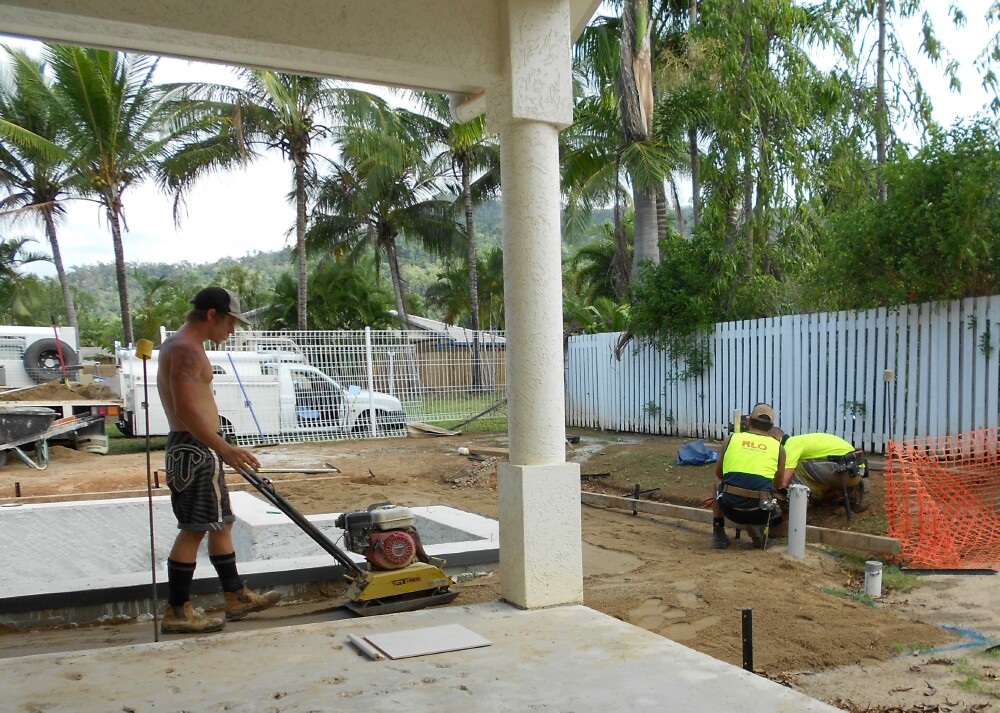

... and this was compacted to the approximate height for the slab

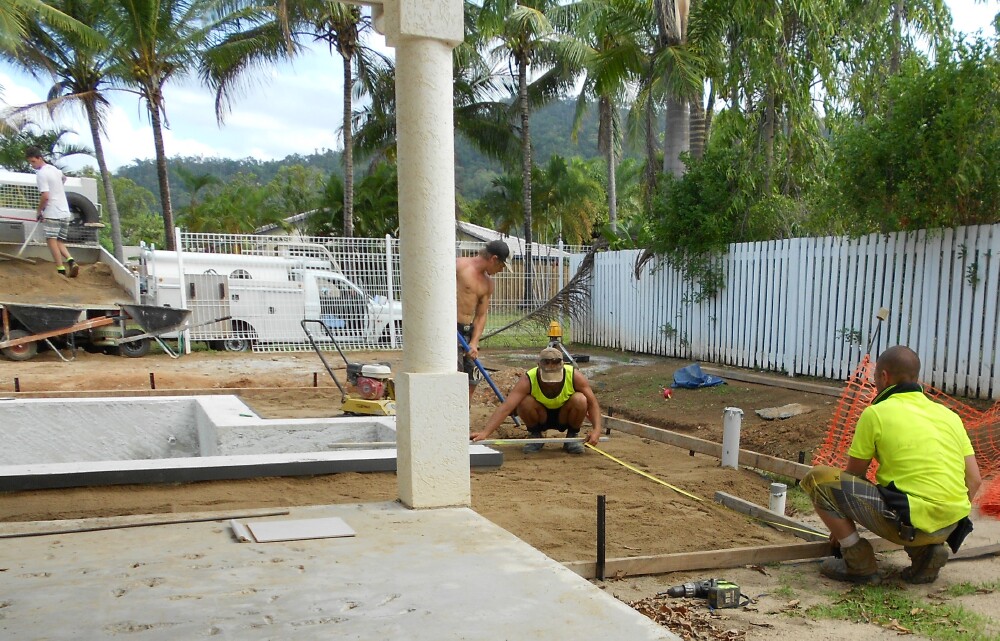

The measuring and boxing out continues ...

... along with the sand spreading

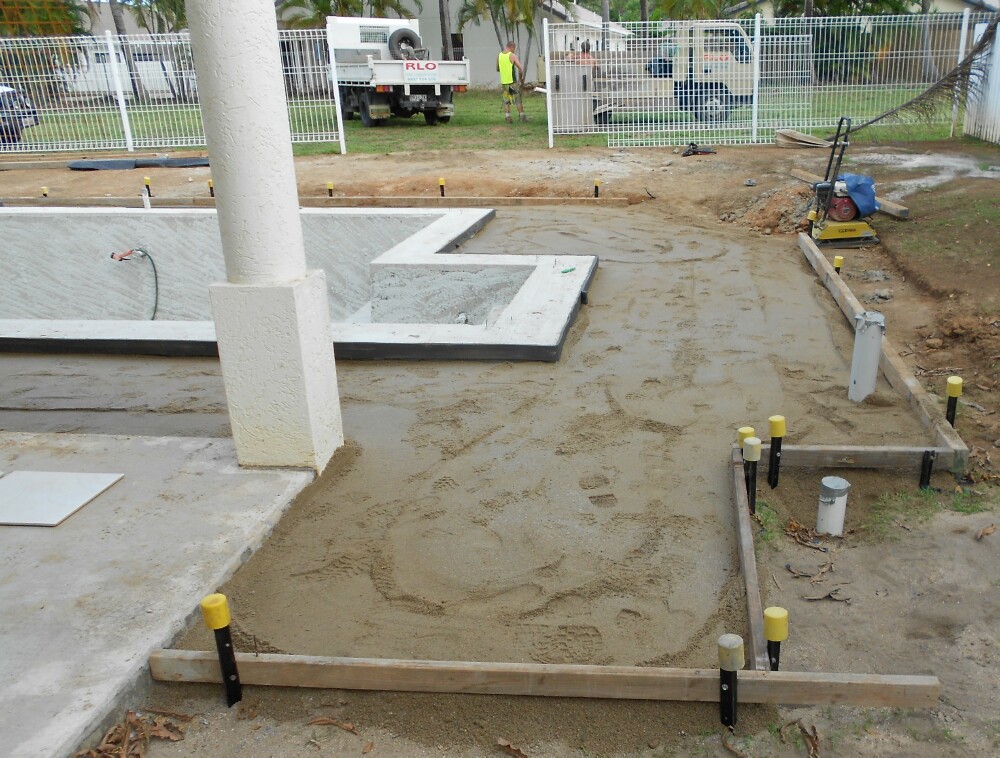

Some of the boxing is now completed

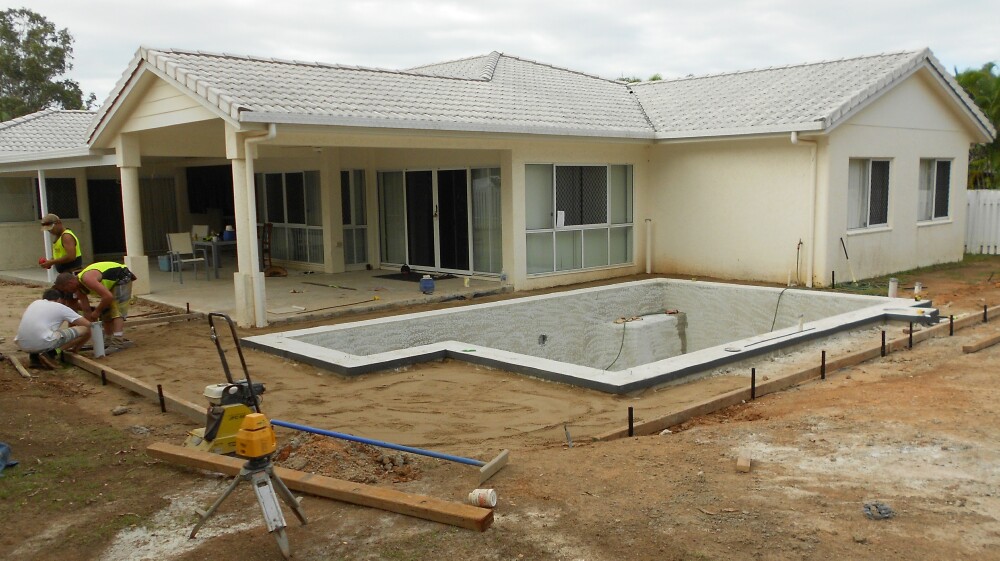

In the foreground is the 'very necessary' laser level which was required

.

.

****************************************************************************

Wednesday 26th October 2011

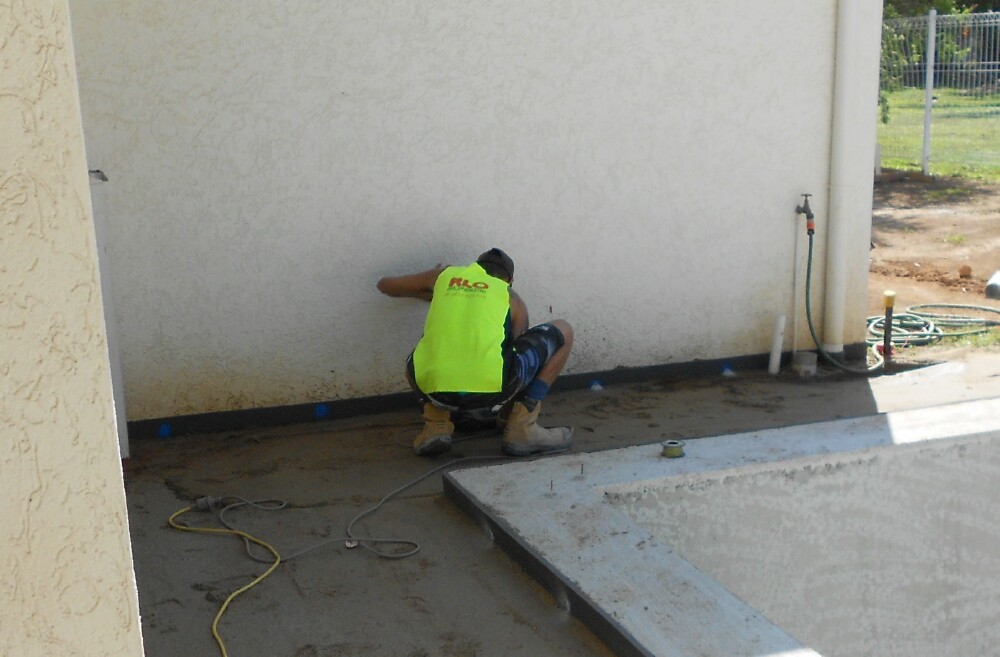

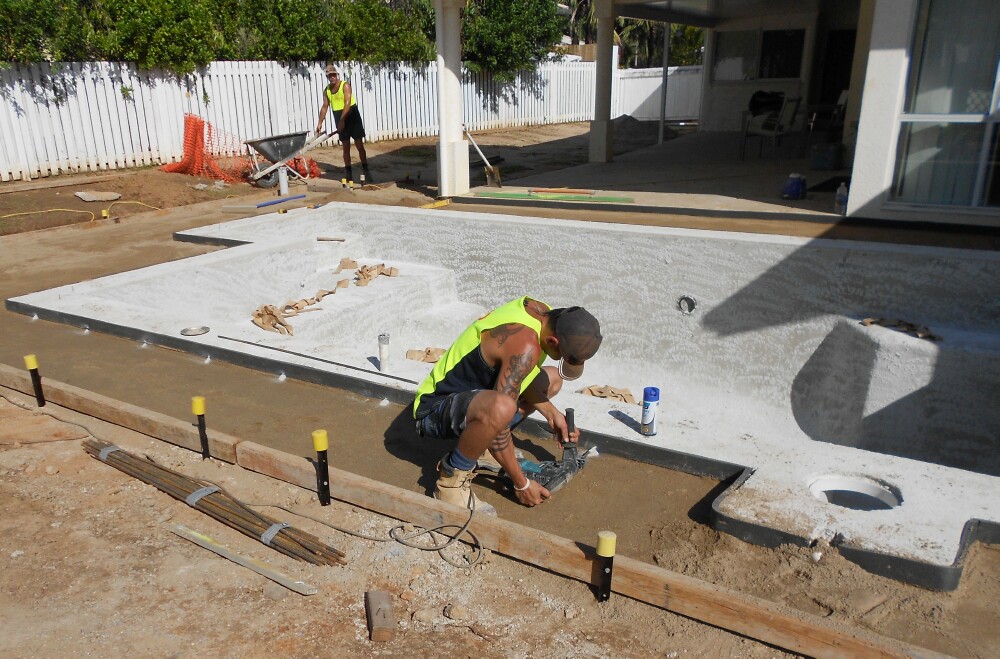

These holes are being drilled all around the pool and along the edge of the existing house slab
and then the rio-bars will be driven in and this then ties the new slab in with both the old and also with the pool

.

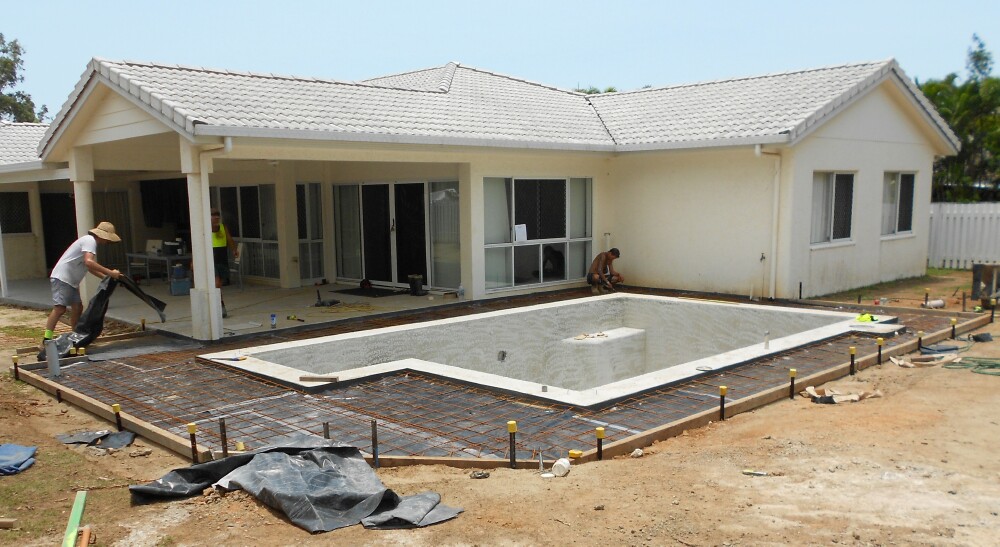

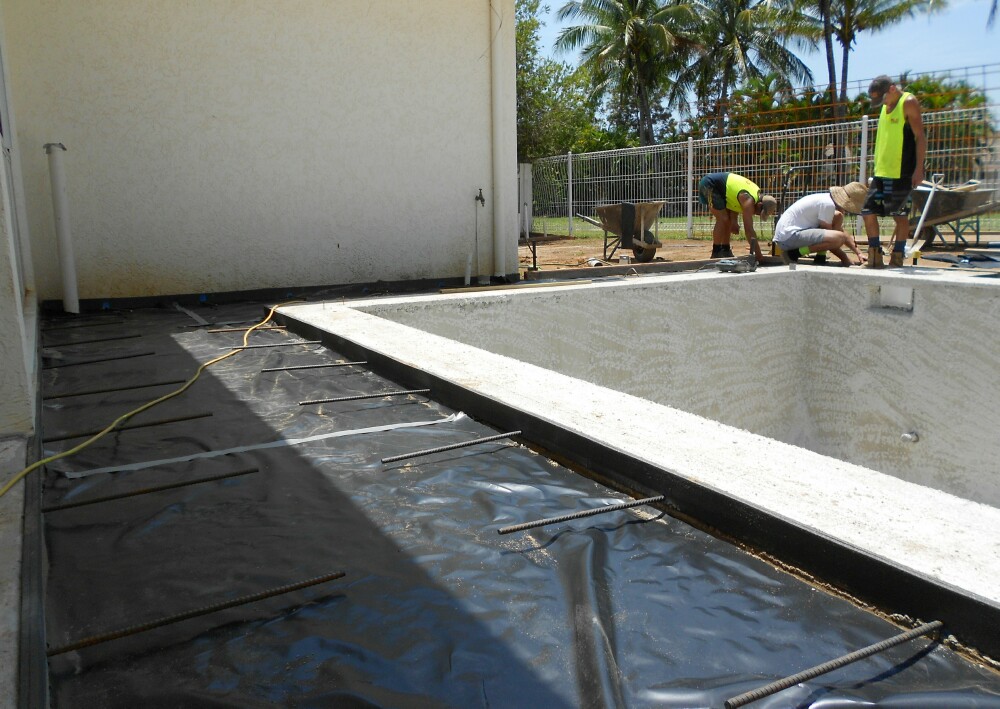

Screeding off the fill sand and starting to lay the black plastic

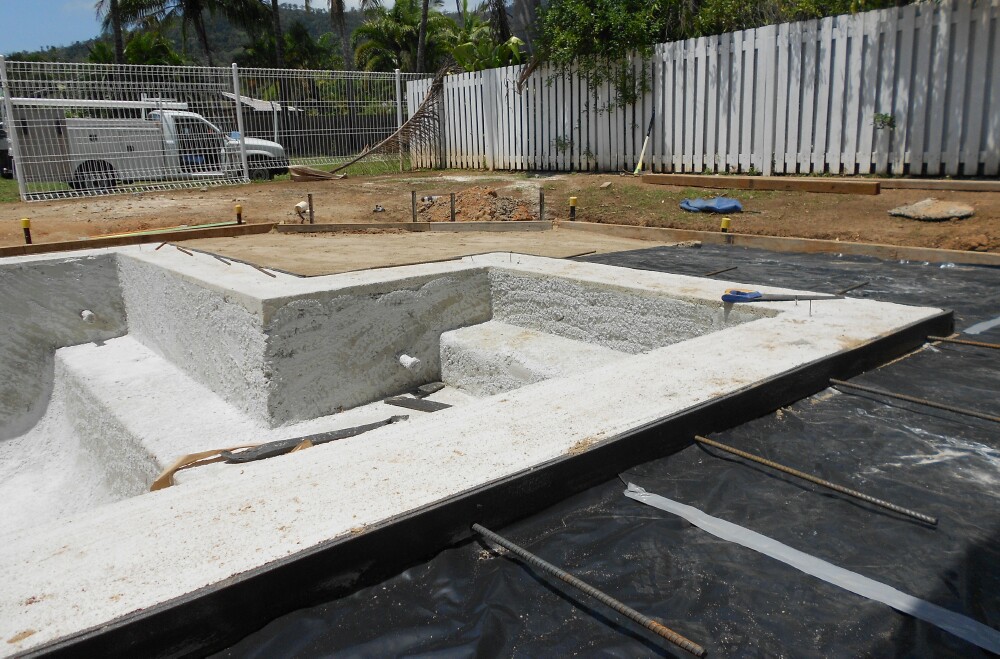

Here is a close look at the rio-bars which tie everything together

.

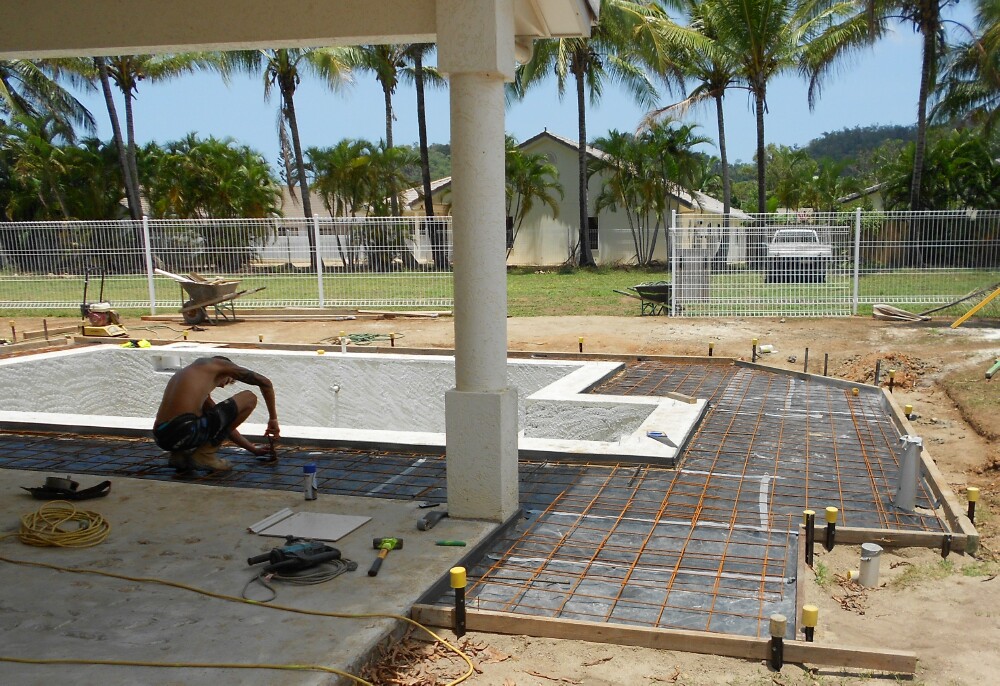

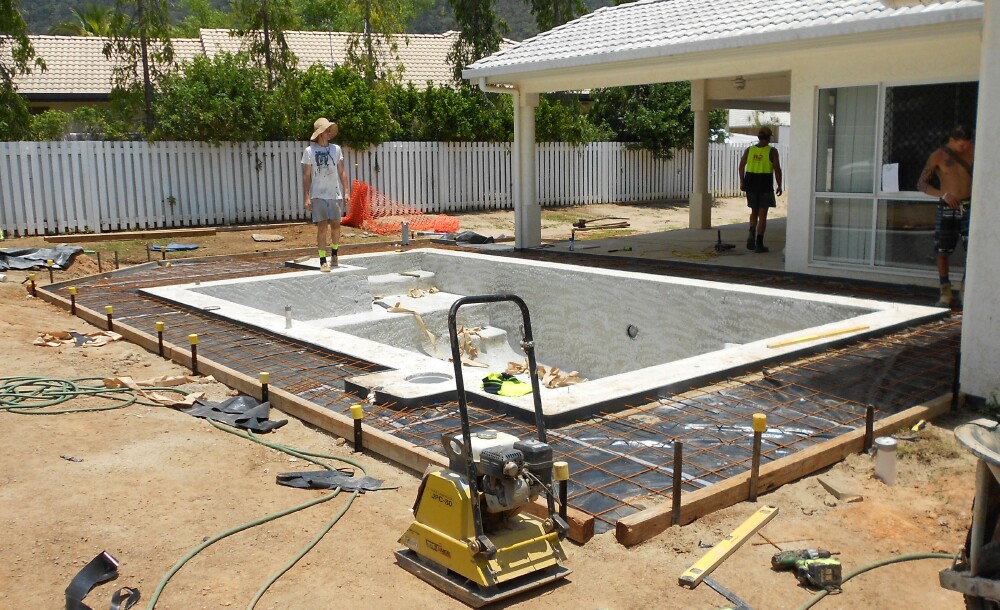

The boxing out is now finished and most of the mesh has been cut and laid

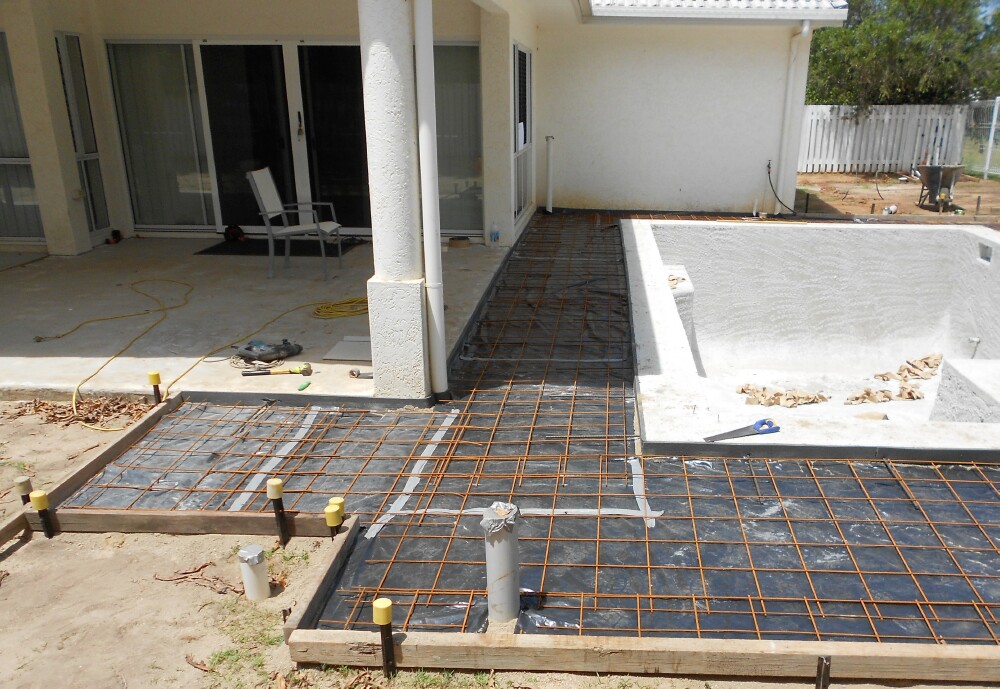

A few finishing touches and it is ready for the concrete

.

.

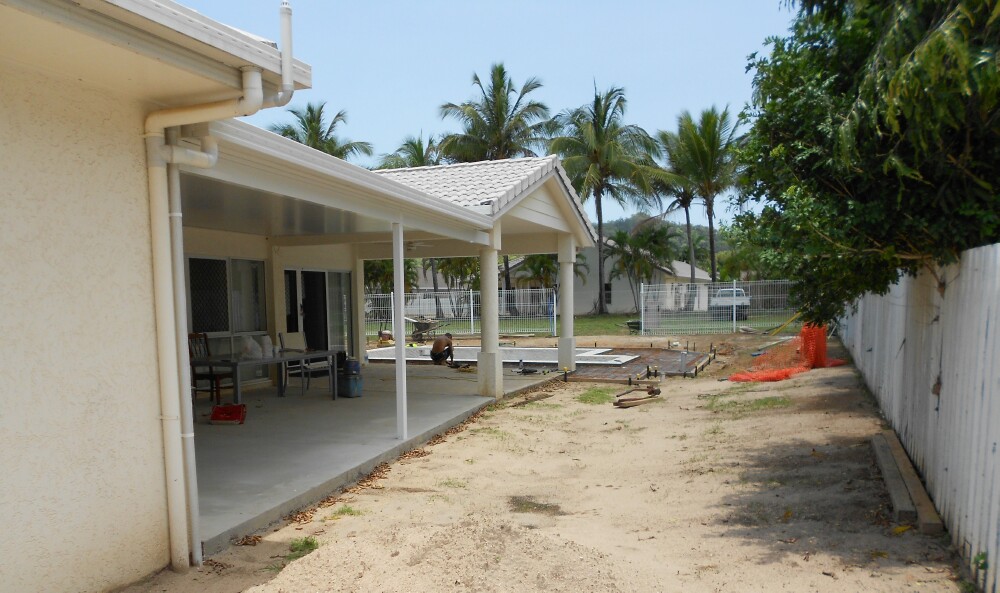

A look from the gate at the side of the house

---
